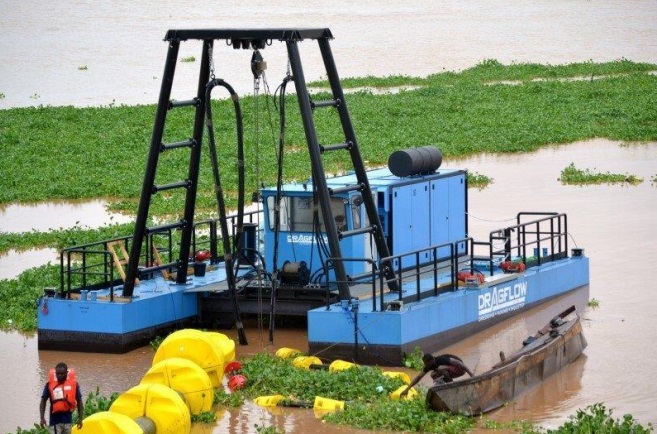

Dragflow DRH 400 steel cable dredger with submersible dredging head


Object nr :  200639


2 x complete small dredgers DRAGFLOW DRH 400 - steel cable dredge
built 2011 Italy at Dragflow
demountable and road/sea transportable dredger
LOA 12 m, breadth 8m, depth 1,8m
Submersible dredging pump unit
dredging pump unit DRAGFLOW 12 hard chrome
dredging pump submersed by steelwire
high pressure water system
suctionhead with 2 cutters Dragflow 14"/350 mm
working depth for dredging up to 100 m
main engine CAT C18 ± 450 kW
max dredging capacity abt 1400 cbm/hour
Sandpump HY400
sand pump (delivery) capacity 1200 cbm/hr
delivery distance abt 1500 meters
both units have only 1100 working hours

Sellers price of complete unit EURO 265.000 as is/where is ex work (EXW) Netherlands

Each complete Dragflow DRH400 unit can be transported by road or shipped/transported in 4 to 5 x 40' containers.

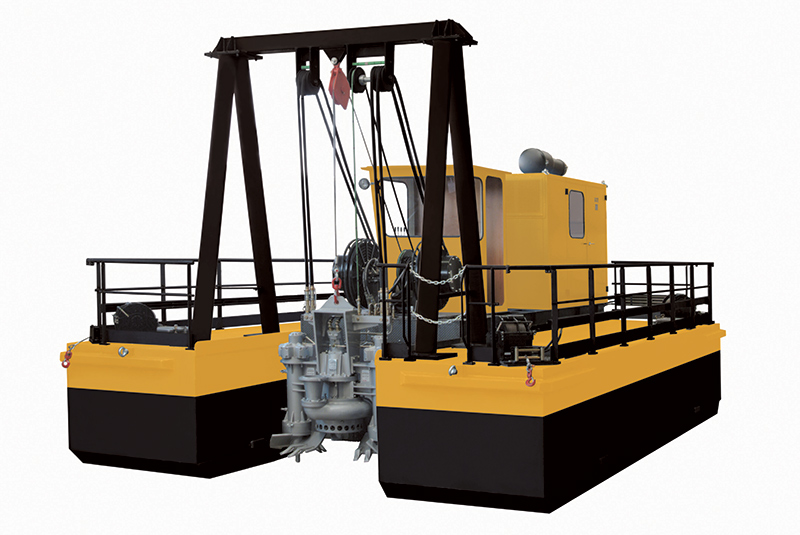

Dragflow DRH400 drawing


Additionally we can offer 2 km floating dredge/sand transport pipes of 8" (225 mm Ø) and 12 m length with coupling flanges and floaters

In stock 200 pipes of 12 m length and 200 floaters
